Biddle-Gaumer Company Exterior Lighting Fixtures, Catalogue No. 19, 1927Read all 52 scan pages ↗

Source & rights

Biddle-Gaumer Company, Exterior Lighting Fixtures: Standards, Post Lights, Lanterns, Bracket Lanterns, catalogue No. 19 (1927). Avery Architectural and Fine Arts Library, Columbia University Libraries; digitized by Internet Archive for the Building Technology Heritage Library.

Public domain. Page images are resized derivatives of the complete institutional scan. The original catalog's model numbers, dimensions, and maker identification remain visible.

Verify the catalog record at Internet Archive ↗

Architectural exterior lighting · 1927

Biddle-Gaumer Company

Exterior Lighting Fixtures, Catalogue No. 19

Biddle-Gaumer's catalogue No. 19 is a focused exterior-lighting reference rather than a general electrical book. It begins with bracket arms and globe holders, proceeds through Gothic, Colonial, and picturesque wall lanterns, then documents hanging lanterns and an extensive range of posts and standards.

The manufacturer's front matter says the fixtures could be furnished in iron, copper, or bronze and offered a service department for special designs based on plans or blueprints. Individual plates record dimensions and model numbers, making the catalog useful for separating a complete exterior fixture from a later marriage of lantern, bracket, and glass.

The title page gives the Philadelphia address, the company's 1882 establishment date, its 1890 incorporation, and a 1927 copyright date. The complete Avery Library scan contains 52 images and preserves an inserted price list.

Selected pages from the original scan

These are unaltered page compositions from the cited catalog, resized for the web. Open any page to inspect it in the complete institutional scan.

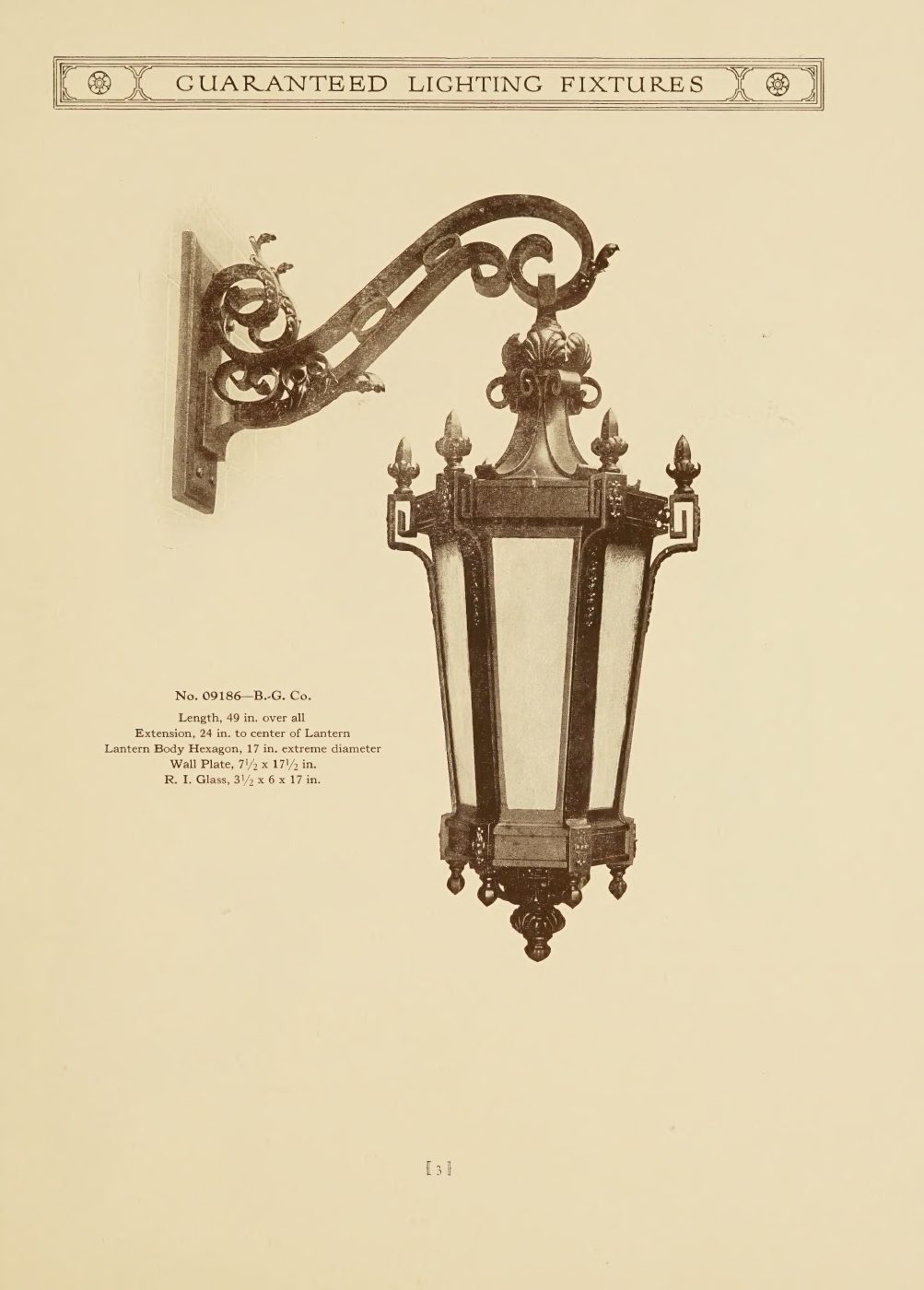

A large hexagonal bracket lantern with dimensions for body, extension, wall plate, and glass.
Scan page 5 A large hexagonal bracket lantern with dimensions for body, extension, wall plate, and glass.

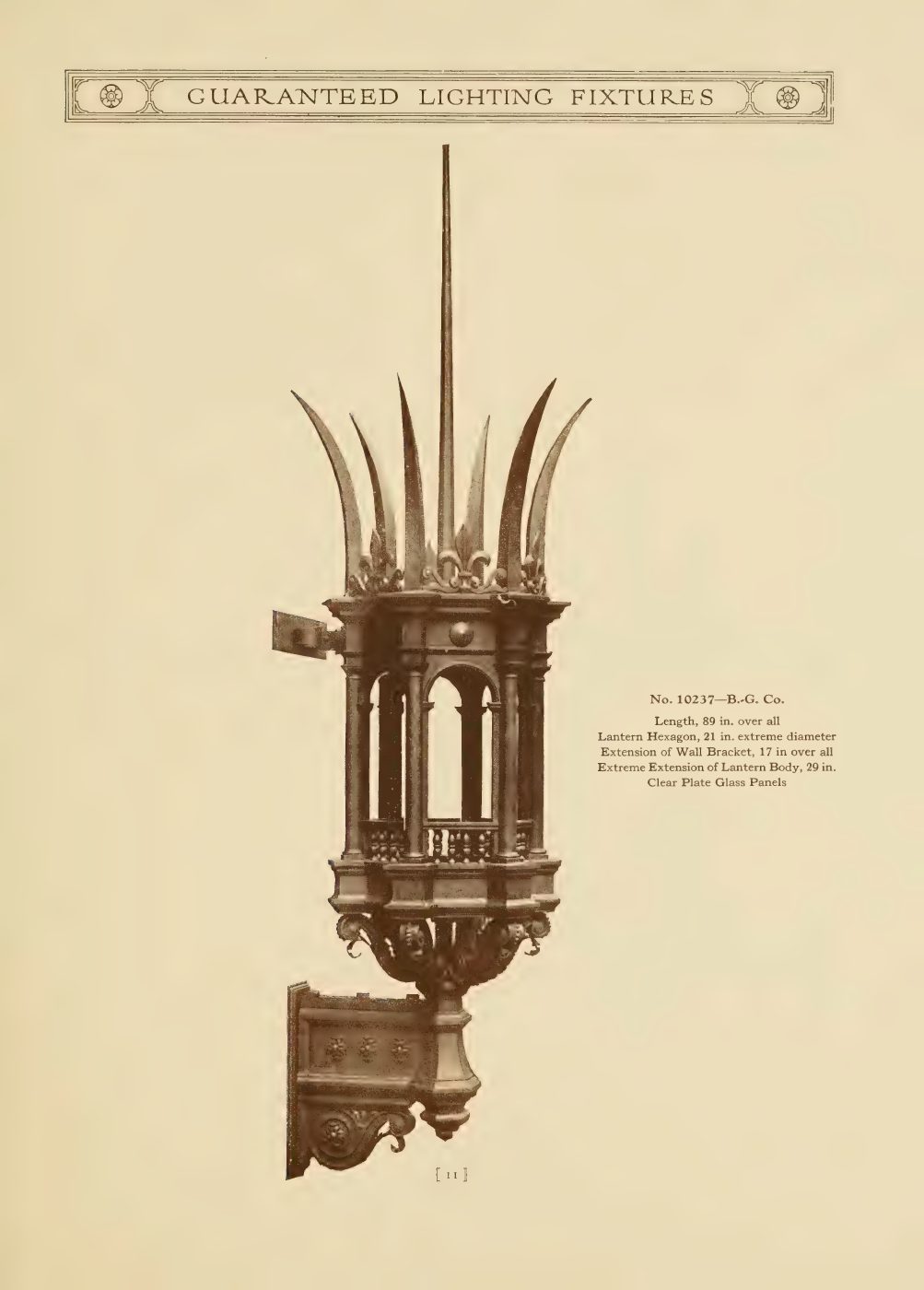

A tall Gothic wall lantern with pointed crown details and a heavy backplate.
Scan page 13 A tall Gothic wall lantern with pointed crown details and a heavy backplate.
Three residential wall lanterns with different roofs, frames, and bracket treatments.
Scan page 18 Three residential wall lanterns with different roofs, frames, and bracket treatments.

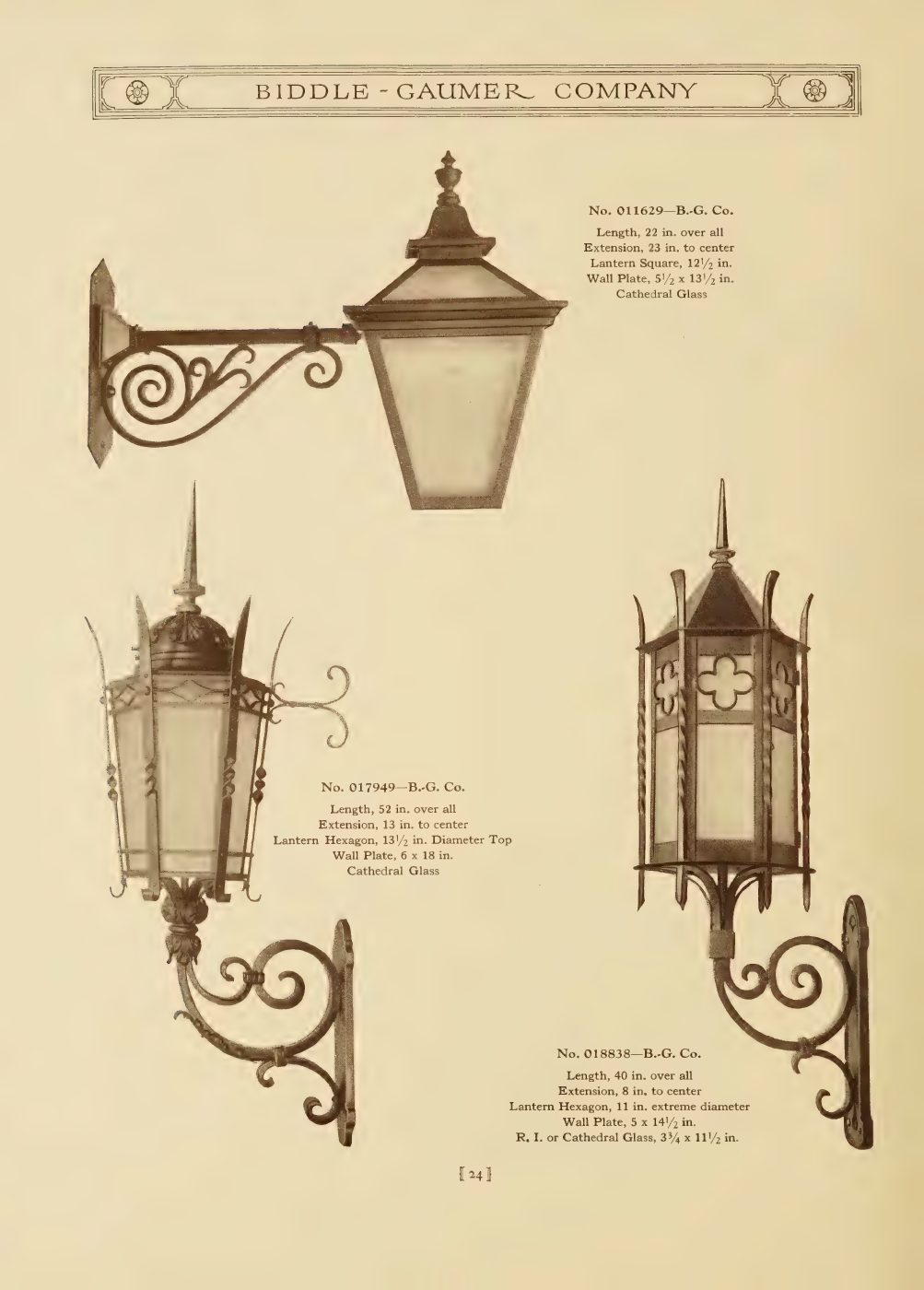

Picturesque bracket lanterns using scroll arms, pierced roofs, and rectangular glass bodies.
Scan page 26 Picturesque bracket lanterns using scroll arms, pierced roofs, and rectangular glass bodies.

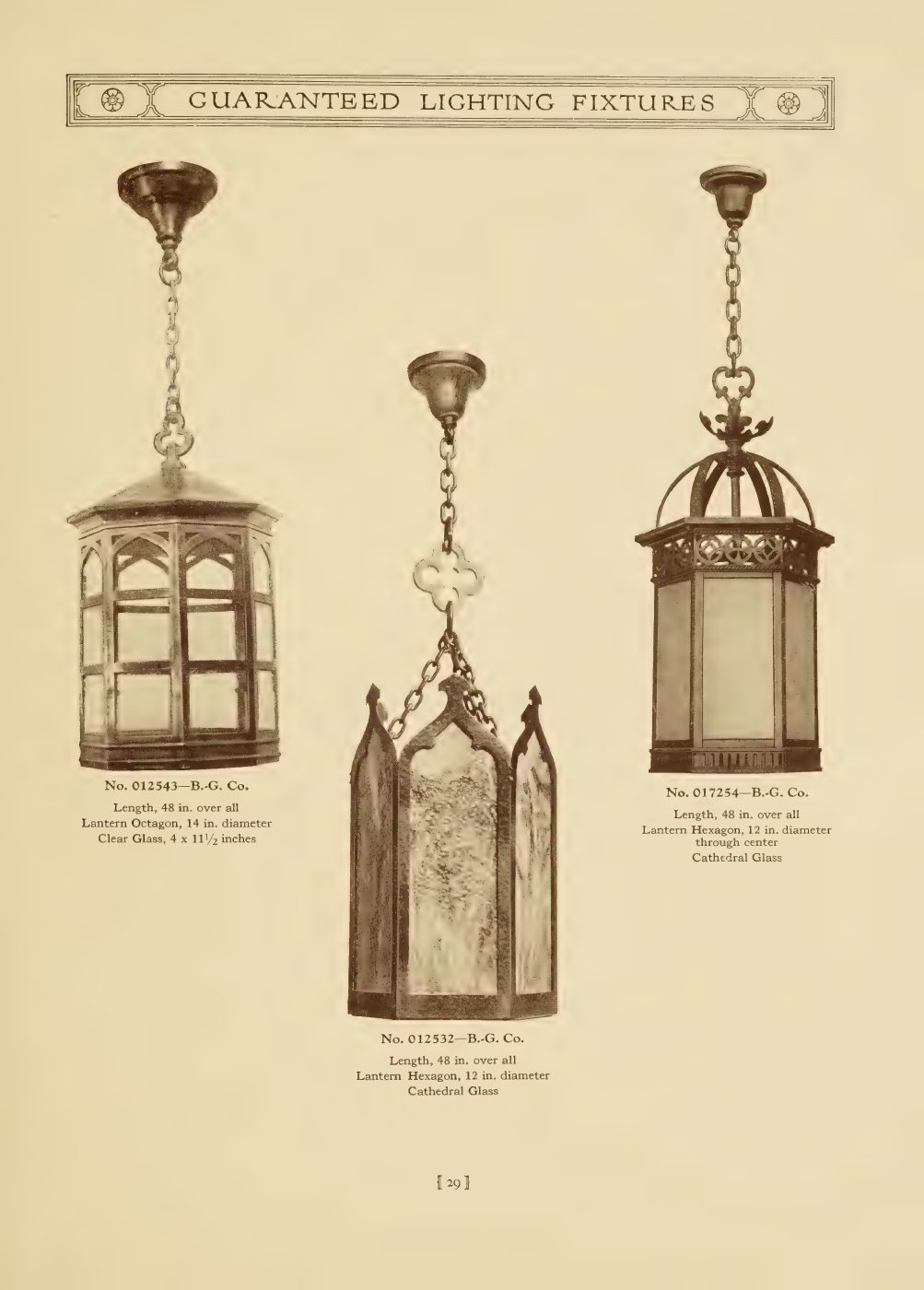

Hanging lanterns with chain, rod, and ceiling-canopy suspension options.
Scan page 31 Hanging lanterns with chain, rod, and ceiling-canopy suspension options.
Post-top lanterns ranging from Gothic tracery to restrained square frames.
Scan page 36 Post-top lanterns ranging from Gothic tracery to restrained square frames.

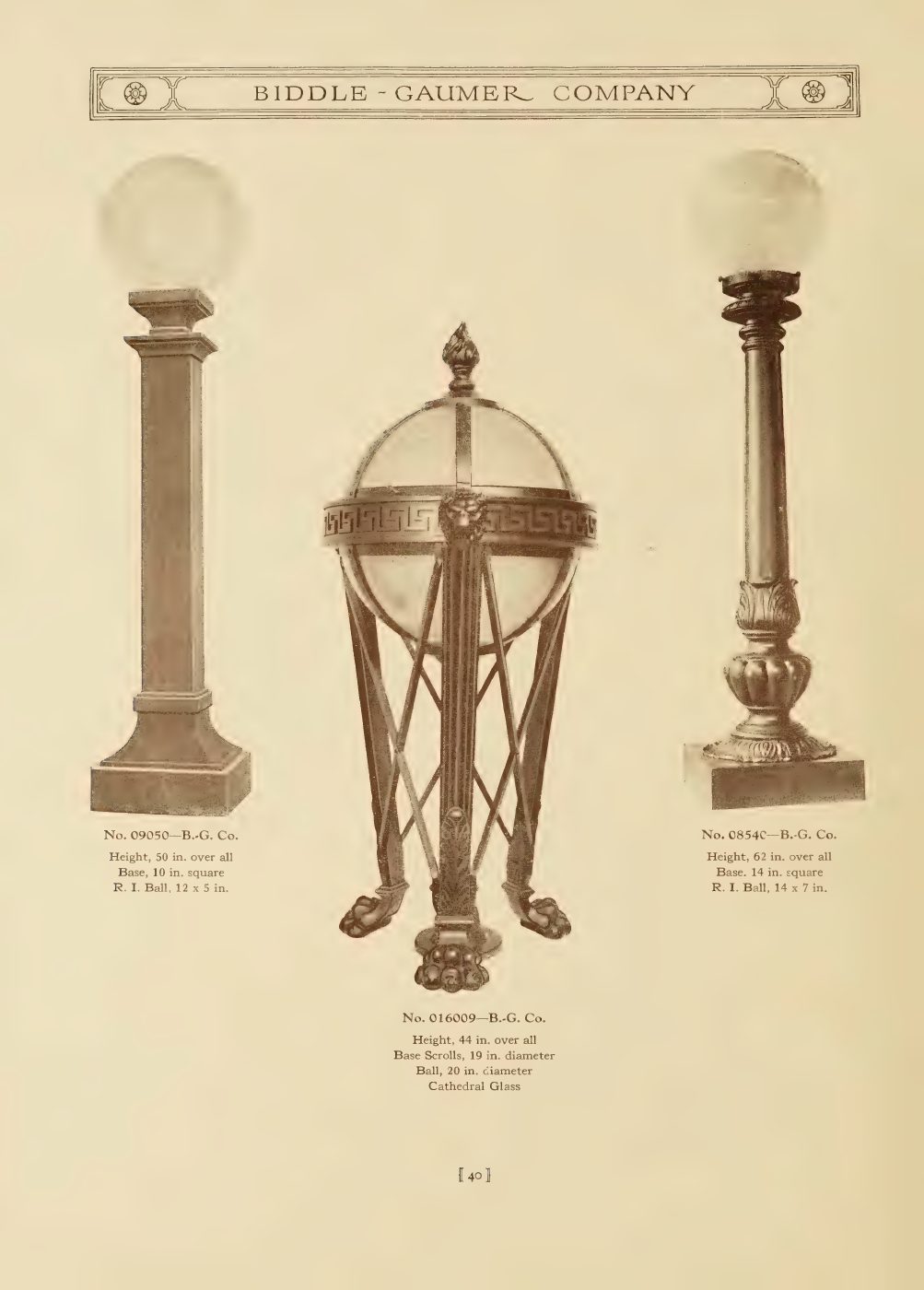

Complete exterior standards pairing ornamental posts with globe and lantern tops.
Scan page 42 Complete exterior standards pairing ornamental posts with globe and lantern tops.

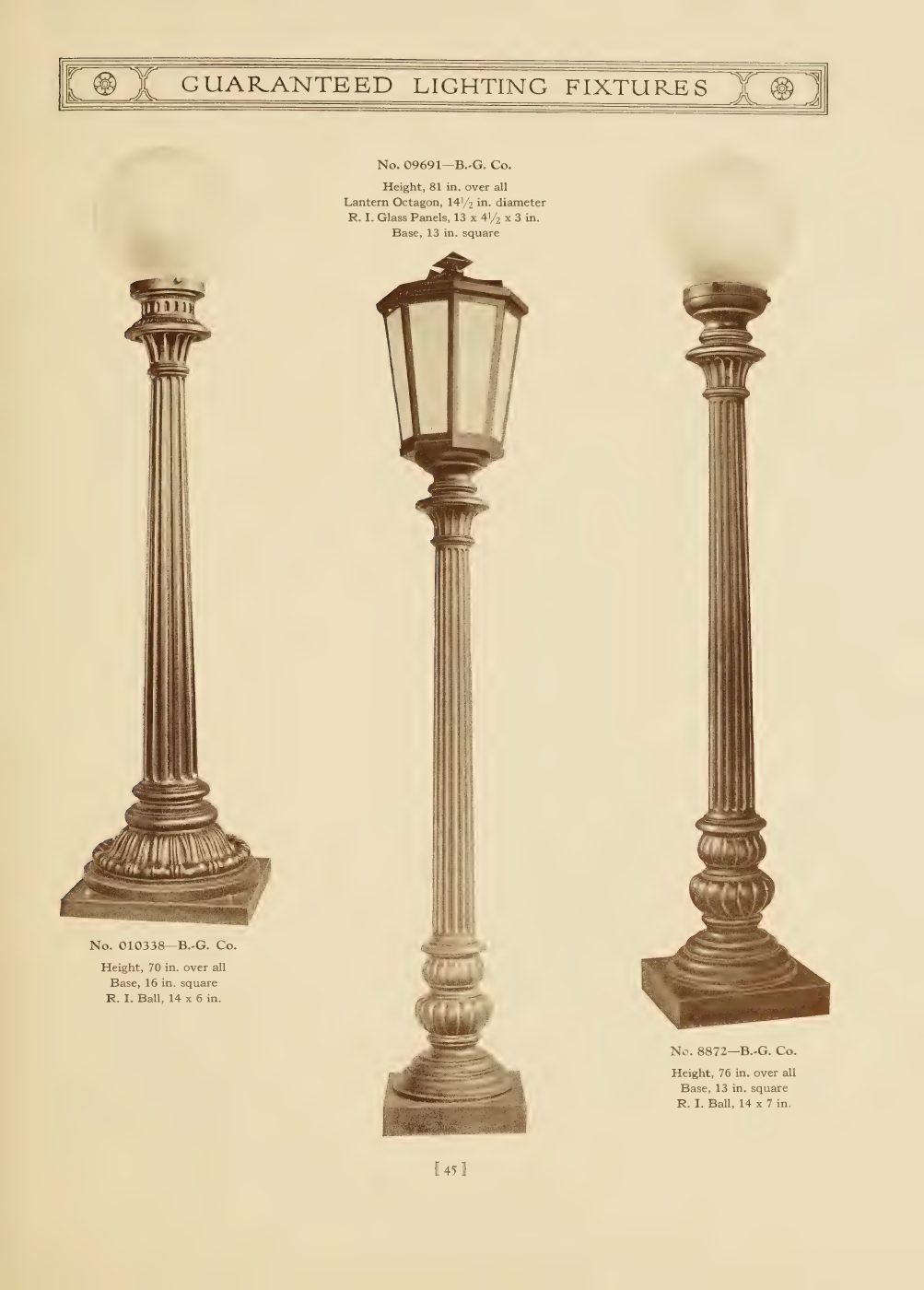

Tall cast-metal standards with varied bases, shafts, and capital details.
Scan page 47 Tall cast-metal standards with varied bases, shafts, and capital details.
